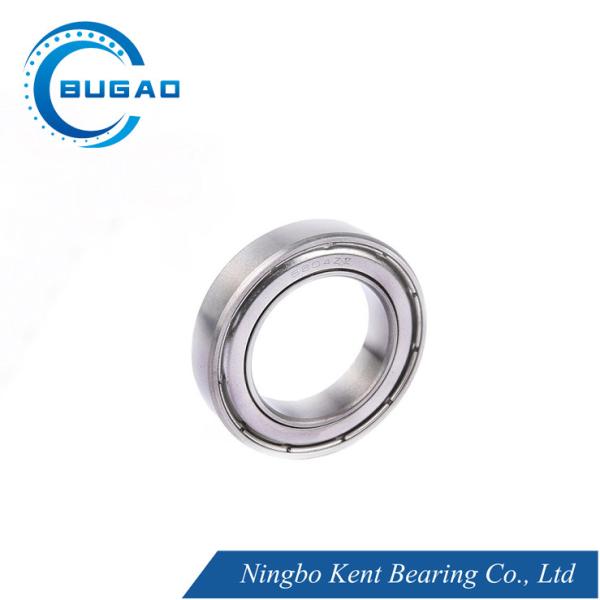

Single Row Deep Groove Ball Bearing Chrome Steel 6806 ZZ Bearing

Ask Lasest Price
Brand Name :	BUGAO
Model Number :	6806ZZ, 6806 2RS, 6806
Certification :	ISO 9001:2015
Price :	Negotiable
Payment Terms :	T/T,L/C,Western Union
Supply Ability :	30,000,000 sets
Delivery Time :	Negotiable

Add to Cart

Product Details
Company Profile

Single Row Deep Groove Ball Bearing Chrome Steel 6806 ZZ Bearing

6806ZZ Deep Groove Ball Bearing Chrome Steel Double Sealed Bearing for Motors Pumps Conveyors

The Single Row Deep Groove Ball Bearing model 6806 ZZ is a high-quality bearing made from chrome steel, designed for applications requiring durability, precision, and smooth operation. This bearing features a single row deep groove design, which allows it to handle both radial and axial loads efficiently. The ZZ suffix indicates that the bearing is equipped with metal shields on both sides, providing protection against dust and debris while retaining lubrication. With a precision grade of Z3, this bearing ensures low noise, minimal vibration, and high rotational accuracy, making it suitable for a wide range of industrial and mechanical applications.

Key Features:
Material: High-grade chrome steel for excellent durability and wear resistance.

Shield Type: Double metal shields (ZZ) for contamination protection.

Precision Grade: Z3, ensuring smooth and quiet operation.

Load Capacity: Capable of handling both radial and axial loads.

Low Maintenance: Shielded design reduces the need for frequent relubrication.

Versatility: Suitable for high-speed and high-precision applications.

Advantages of 6806 ZZ Bearing (Z3 Precision):
High Precision: The Z3 precision grade ensures minimal vibration and noise, making it ideal for applications requiring smooth operation.

Durability: Chrome steel construction provides excellent resistance to wear and corrosion, extending the bearing's lifespan.

Contamination Protection: The double metal shields (ZZ) protect the bearing from dust and debris, ensuring reliable performance in harsh environments.

Low Friction: Designed for efficient operation, reducing energy consumption and heat generation.

Versatility: Suitable for a wide range of applications, from small machinery to high-speed equipment.

Applications:
Electric Motors: Used in small to medium-sized motors for smooth and quiet operation.

Industrial Machinery: Ideal for pumps, compressors, and gearboxes requiring high precision and durability.

Automotive Components: Suitable for applications like alternators, fans, and small transmission systems.

Household Appliances: Used in washing machines, dryers, and other appliances where low noise and reliability are critical.

Medical Equipment: Ensures precise and smooth operation in devices like centrifuges and small medical tools.

Specifications:

Bearing Model	6806 ZZ
Precision grade	ABEC-1 / P0, ABEC-3 / P6, ABEC-5 / P5
Inside diameter	30mm / 1.18"
Outside diameter	42mm / 1.65"
Thickness	7mm / 0.27"
Weight	0.026kg
Seals type	Double metal seal
Grease	Prelubrication
Temperature range	-30℃~+180℃
Refer dynamic load	4700N
Refer static load	3650N
Refer oil speed	17000RPM
Refer grease speed	13000RPM
Clearance	C2, Standard C0, C3
Materials	AISI51200 chromium bearing steel
Load distribution	Radial and axial

Single Row Deep Groove Ball Bearing Chrome Steel 6806 ZZ Bearing

Technical Parameters of 6800 Series Thin Wall Deep Groove Ball Bearing:

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight kg/pc
									Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
	mm	inch	mm	inch	mm	inch	mm	inch	C	C_O	r/min	r/min
685	5	0.1969	11	0.4331	3	0.1181	0.1	0.006	0.715	0.282	35000	45000	0.0011
686	6	0.2362	13	0.5118	3.5	0.1378	0.15	0.006	1.08	0.44	33000	42000	0.0019
687	7	0.2756	14	0.5512	3.5	0.1378	0.15	0.006	1.17	0.51	31000	40000	0.0021
688	8	0.3150	16	0.6299	4	0.1575	0.2	0.008	1.26	0.585	29000	38000	0.0031
689	9	0.3543	17	0.6693	4	0.1575	0.2	0.008	1.72	0.82	28000	36000	0.0032
6800	10	0.3937	19	0.7480	5	0.1969	0.3	0.012	1.83	0.925	26000	34000	0.005
6800W7	10	0.3937	19	0.7480	7	0.2756	0.3	0.012	1.83	0.925	26000	34000	0.006
6801	12	0.4724	21	0.8268	5	0.1969	0.3	0.012	1.92	1.04	22000	30000	0.006
6802	15	0.5906	24	0.9449	5	0.1969	0.3	0.012	2.08	1.26	20000	28000	0.007
6803	17	0.6693	26	1.0236	5	0.1969	0.3	0.012	2.81	1.72	19000	26000	0.008
6804	20	0.7874	32	1.2598	7	0.2756	0.3	0.012	4	2.47	17000	22000	0.019
6805	25	0.9843	37	1.4567	7	0.2756	0.3	0.012	4.3	2.95	15000	19000	0.022
6806	30	1.1811	42	1.6535	7	0.2756	0.3	0.012	4.7	3.65	13000	17000	0.026
6807	35	1.3780	47	1.8504	7	0.2756	0.3	0.012	4.9	4.05	11000	15000	0.029
6808	40	1.5748	52	2.0472	7	0.2756	0.3	0.012	5.1	4.4	9000	13000	0.033
6809	45	1.7717	58	2.2835	7	0.2756	0.3	0.012	6.4	5.65	7000	11000	0.04
6810	50	1.9685	65	2.5591	7	0.2756	0.3	0.012	6.6	6.1	5000	9000	0.052

Wide Applications of Thin Section Deep Groove Ball Bearings:

Single Row Deep Groove Ball Bearing Chrome Steel 6806 ZZ Bearing

Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50
