Thin Section 6900 Series Bearing P0 ABEC 5 Bearing 6909ZZ For Robots Motors

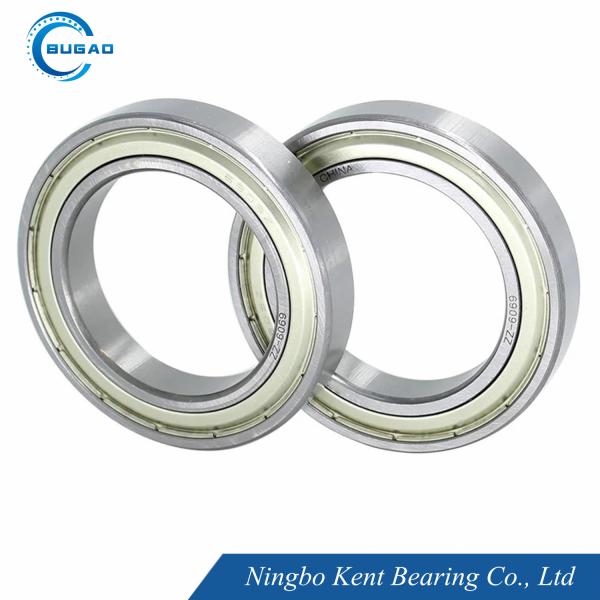

6909ZZ Bearing ABEC-1 P0 Thin Section Ball Bearings for Robots Motors:

Parameter	Value
Inner Diameter (d)	45 mm
Outer Diameter (D)	68 mm
Width (B)	12 mm
Dynamic Load Rating (C)	Typically around 21.6 kN (varies by manufacturer)
Static Load Rating (C₀)	Typically around 14.3 kN (varies by manufacturer)
Maximum Speed	Depends on lubrication and operating conditions, but generally suitable for high-speed applications.

Characteristics of Thin-Walled Bearings:

1. Space-Saving Design

Thin-walled bearings are characterized by their slim cross-section relative to their diameter. This compact design allows them to fit into tight spaces where standard bearings cannot, making them ideal for applications with limited installation space. Despite their reduced size, they maintain high performance and load-carrying capacity.

2. Lightweight Construction

These bearings are significantly lighter than conventional bearings due to their thin walls and optimized material usage. This lightweight nature is particularly beneficial in weight-sensitive applications, such as aerospace, robotics, and automotive systems, where reducing overall weight is crucial for efficiency and performance.

3. High Load Capacity

Despite their thin design, thin-walled bearings are engineered to handle substantial radial, axial, and moment loads. This makes them versatile and suitable for a wide range of applications, from light-duty machinery to heavy-duty industrial equipment. Their ability to support multiple load types ensures reliable performance in dynamic and demanding environments.

4. Precision Engineering

Thin-walled bearings are manufactured to extremely high precision standards. This ensures smooth operation, minimal vibration, and accurate motion control, which are essential for applications requiring high levels of accuracy, such as robotics, medical devices, and optical systems.

5. Material Variety

These bearings are available in a variety of materials to suit different application requirements. Common materials include:

Stainless Steel: Offers corrosion resistance and durability, ideal for harsh environments.

Carbon Steel: Provides high strength and load capacity for industrial applications.

Ceramics: Used in high-temperature or electrically insulating applications.
The choice of material can be tailored to meet specific operational needs, such as corrosion resistance, high-temperature performance, or reduced weight.

6. Customizability

Thin-walled bearings can be customized in terms of size, material, sealing options, and lubrication. This flexibility allows them to meet the unique requirements of various industries, including aerospace, medical, and renewable energy. Custom seals, coatings, and lubricants can further enhance their performance in specific environments.

7. Reduced Friction

The precise design and high-quality materials used in thin-walled bearings minimize friction during operation. This results in improved efficiency, reduced energy consumption, and lower operating temperatures, which contribute to longer bearing life and reduced maintenance costs.

Thin Section 6900 Series Bearing P0 ABEC 5 Bearing 6909ZZ For Robots Motors

Technical Parameters of 6900 Series Thin Wall Deep Groove Ball Bearing:

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight kg/pc
									Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
	mm	inch	mm	inch	mm	inch	mm	inch	C	C_O	r/min	r/min
693	3	0.1181	8	0.315	3	0.1181	0.15	0.006	0.56	0.18	54000	63000	0.0006
W693	3	0.1181	8	0.315	4	0.1575	0.15	0.006	0.56	0.18	54000	63000	0.0007
694	4	0.1575	11	0.4331	4	0.1575	0.15	0.006	0.715	0.276	45000	52000	0.0018
695	5	0.1969	13	0.5118	4	0.1575	0.2	0.008	1.08	0.43	34000	43000	0.0024
696	6	0.2362	15	0.5906	5	0.1969	0.2	0.008	1.35	0.53	32000	40000	0.0038
697	7	0.2756	17	0.6693	5	0.1969	0.3	0.012	1.61	0.715	30000	38000	0.0052
698	8	0.3150	19	0.7480	6	0.2362	0.3	0.012	1.99	0.865	28000	36000	0.0073
699	9	0.3543	20	0.7874	6	0.2362	0.3	0.012	2.48	1.09	27000	34000	0.0082
6900	10	0.3937	22	0.8661	6	0.2362	0.3	0.012	2.7	1.27	25000	32000	0.009
6901	12	0.4724	24	0.9449	6	0.2362	0.3	0.012	2.89	1.46	20000	28000	0.011
6902	15	0.5906	28	1.1024	7	0.2756	0.3	0.012	4.1	2.06	19000	26000	0.016
6903	17	0.6693	30	1.1811	7	0.2756	0.3	0.012	4.65	2.58	18000	24000	0.018
6904	20	0.7874	37	1.4567	9	0.3543	0.3	0.012	6.4	3.7	17000	22000	0.036
6905	25	0.9843	42	1.6535	9	0.3543	0.3	0.012	7.05	4.55	14000	18000	0.042
6906	30	1.1811	47	1.8504	9	0.3543	0.3	0.012	7.25	5	12000	16000	0.048
6907	35	1.3780	55	2.1654	10	0.3937	0.3	0.012	11.2	7.45	10000	14000	0.074
6908	40	1.5748	62	2.4409	12	0.4724	0.3	0.012	14.6	10.2	8000	12000	0.11
6909	45	1.7717	68	2.6772	12	0.4724	0.3	0.012	15.1	11.2	6000	10000	0.128
6910	50	1.9685	72	2.8346	12	0.4724	0.3	0.012	15.6	12.2	4000	8000	0.132

Wide Applications of Thin Section Deep Groove Ball Bearings:

Thin Section 6900 Series Bearing P0 ABEC 5 Bearing 6909ZZ For Robots Motors

Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48	64	61	56	53	50
