| Brand Name : | BUGAO |
| Model Number : | 6205 6205ZZ 6205-2RS |
| Certification : | ISO 9001:2015 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 30,000,000 sets |
| Delivery Time : | Negotiable |

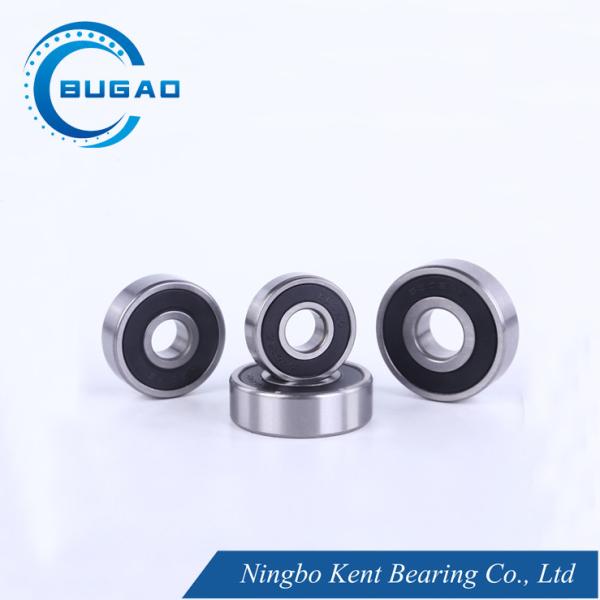

P5 Z3V3 Silence Ball Bearing For High Quality Pumps, Pump Motors
The Stainless Steel P5 Bearing C3 Low Noise Bearing 6205 is a high-precision, corrosion-resistant bearing designed for demanding applications such as pumps and water pumps. Available in three variants—6205ZZ (double metal shields), 6205-2RS (double rubber seals), and open type—this bearing is engineered to deliver exceptional performance in environments where corrosion resistance, low noise, and high precision are critical. The P5 precision grade ensures smooth and quiet operation, while the C3 internal clearance makes it suitable for high-speed or high-temperature applications. Its stainless steel construction provides excellent resistance to rust and corrosion, making it ideal for use in water pumps and other wet or corrosive environments.
Type: Single Row Deep Groove Ball Bearing
Material: Stainless Steel (corrosion-resistant)
Precision Grade: P5 (high precision for smooth and quiet operation)
Internal Clearance: C3 (greater than standard, suitable for high-speed or high-temperature applications)
Variants:
6205ZZ: Double Metal Shields (dustproof)
6205-2RS: Double Rubber Seals (dustproof and water-resistant)
Open Type: No shields or seals (for specific applications)
Load Capacity: Handles both radial and axial loads
Application Focus: Pumps, water pumps, and other corrosive or wet environments
Corrosion Resistance: Made from stainless steel, the bearing is highly resistant to rust and corrosion, making it ideal for water pumps and other wet environments.
Low Noise Operation: The P5 precision grade ensures smooth and quiet operation, reducing noise in sensitive applications.
High-Speed Capability: The C3 internal clearance allows for reliable performance in high-speed or high-temperature conditions.
Versatile Protection Options:
6205ZZ: Double metal shields for dustproof protection.
6205-2RS: Double rubber seals for dustproof and water-resistant protection.
Open Type: For applications where shields or seals are not required.
Durability: Stainless steel construction ensures long service life, even in harsh or corrosive environments.
The 6205 bearing has the following standard dimensions:
| Parameter | Value (mm) |
|---|---|
| Inner Diameter (d) | 25 mm |
| Outer Diameter (D) | 52 mm |
| Width (B) | 15 mm |
The Stainless Steel P5 Bearing C3 Low Noise Bearing 6205 is specifically designed for use in pumps, water pumps, and other applications where corrosion resistance, precision, and low noise are essential. Key applications include:
Water Pumps: Ideal for use in water pumps due to its corrosion resistance and ability to handle wet environments.
Chemical Pumps: Suitable for pumps handling corrosive fluids, thanks to its stainless steel construction.
Food and Beverage Industry: Used in equipment requiring corrosion resistance and hygiene, such as liquid handling systems.
Marine Applications: Perfect for marine pumps and equipment exposed to saltwater.
HVAC Systems: Ensures reliable performance in water circulation pumps and other HVAC components.
Industrial Pumps: Used in various industrial pumps requiring high precision and durability.
Technical Parameters:
| Basic | Bore d | Outer Diameter D | Width W | Radius r | Basic Load | Maximum Run | Weight | ||||||
| Dynamic | Static | Grease | Oil | ||||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | C | CO | r/min | r/min | ||
| 604 | 4 | 0.1575 | 12 | 0.4724 | 4 | 0.1575 | 0.2 | 0.008 | 0.97 | 0.36 | 43000 | 51000 | 0.002 |
| 605 | 5 | 0.1969 | 14 | 0.5512 | 5 | 0.1969 | 0.2 | 0.008 | 1.33 | 0.505 | 39000 | 46000 | 0.0035 |
| 606 | 6 | 0.2362 | 17 | 0.6693 | 6 | 0.2362 | 0.3 | 0.012 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 607 | 7 | 0.2756 | 19 | 0.7480 | 6 | 0.2362 | 0.3 | 0.012 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 0.3149 | 22 | 0.8661 | 7 | 0.2756 | 0.3 | 0.012 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 0.3543 | 24 | 0.9449 | 7 | 0.2756 | 0.3 | 0.012 | 3.4 | 1.45 | 22000 | 30000 | 0.014 |
| 6000 | 10 | 0.3937 | 26 | 1.0236 | 8 | 0.3150 | 0.3 | 0.012 | 4.55 | 1.96 | 20000 | 28000 | 0.019 |
| 6001 | 12 | 0.4724 | 28 | 1.1024 | 8 | 0.3150 | 0.3 | 0.012 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 0.5906 | 32 | 1.2598 | 9 | 0.3543 | 0.3 | 0.012 | 5.6 | 2.84 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 0.6693 | 35 | 1.3780 | 10 | 0.3937 | 0.3 | 0.012 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 0.7874 | 42 | 1.6535 | 12 | 0.4724 | 0.6 | 0.024 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 0.9843 | 47 | 1.8504 | 12 | 0.4724 | 0.6 | 0.024 | 10.1 | 5.85 | 13000 | 17000 | 0.08 |
| 6006 | 30 | 1.1811 | 55 | 2.1654 | 13 | 0.5118 | 1.0 | 0.039 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
| 6007 | 35 | 1.3780 | 62 | 2.4409 | 14 | 0.5512 | 1.0 | 0.039 | 16 | 10.3 | 10000 | 13000 | 0.155 |
| 6008 | 40 | 1.5748 | 68 | 2.6772 | 15 | 0.5906 | 1.0 | 0.039 | 16.8 | 11.5 | 8000 | 11000 | 0.185 |
| 6009 | 45 | 1.7717 | 75 | 2.9528 | 16 | 0.6299 | 1.0 | 0.039 | 21 | 15.1 | 7200 | 9000 | 0.231 |
| 6010 | 50 | 1.9685 | 80 | 3.1496 | 16 | 0.6299 | 1.0 | 0.039 | 21.8 | 16.6 | 6400 | 7800 | 0.25 |
| 6011 | 55 | 2.1654 | 90 | 3.5433 | 18 | 0.7087 | 1.1 | 0.043 | 28.3 | 21.2 | 5700 | 7000 | 0.362 |
| 6012 | 60 | 2.3622 | 95 | 3.7402 | 18 | 0.7087 | 1.1 | 0.043 | 29.5 | 23.2 | 5000 | 6300 | 0.385 |
| 6013 | 65 | 2.9551 | 100 | 3.9370 | 18 | 0.7087 | 1.1 | 0.043 | 31.9 | 25 | 4800 | 6100 | 0.44 |
| 6014 | 70 | 2.7559 | 110 | 4.3307 | 20 | 0.7874 | 1.1 | 0.043 | 39.7 | 31 | 4600 | 5800 | 0.6 |
| 6015 | 75 | 2.9528 | 115 | 4.5276 | 20 | 0.7874 | 1.1 | 0.043 | 41.6 | 33.5 | 4400 | 5600 | 0.64 |
| Basic Bearing | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating KN | Maximum Run out Speed | Weight | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | Dynamic | Static | Grease | Oil | ||
| C | CO | r/min | r/min | ||||||||||
| 627 | 7 | 0.2756 | 22 | 0.8661 | 7 | 0.2756 | 0.3 | 0.012 | 3.35 | 1.4 | 26000 | 34000 | 0.013 |
| 628 | 8 | 0.3149 | 24 | 0.9448 | 8 | 0.3149 | 0.3 | 0.012 | 4 | 1.59 | 24000 | 32000 | 0.017 |
| 629 | 9 | 0.3543 | 26 | 1.0236 | 8 | 0.3149 | 0.3 | 0.012 | 4.55 | 1.96 | 22000 | 30000 | 0.02 |
| 6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 0.6 | 0.024 | 5.1 | 2.39 | 19000 | 26000 | 0.032 |
| 6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 0.6 | 0.024 | 6.1 | 2.75 | 18000 | 24000 | 0.037 |
| 6202 | 15 | 0.5906 | 35 | 1.3780 | 11 | 0.4331 | 0.6 | 0.024 | 7.75 | 3.6 | 17000 | 22000 | 0.045 |
| 6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 0.6 | 0.024 | 9.6 | 4.6 | 16000 | 20000 | 0.066 |
| 6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 1.0 | 0.039 | 12.8 | 6.65 | 14000 | 18000 | 0.106 |
| 6205 | 25 | 0.9843 | 52 | 2.0470 | 15 | 0.5906 | 1.0 | 0.039 | 14 | 7.85 | 12000 | 16000 | 0.128 |
| 6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 1.0 | 0.039 | 19.5 | 11.3 | 10000 | 13000 | 0.199 |
| 6207 | 35 | 1.3780 | 72 | 2.8346 | 17 | 0.6693 | 1.1 | 0.043 | 25.7 | 15.3 | 8800 | 10000 | 0.287 |
| 6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 1.1 | 0.043 | 29.1 | 17.8 | 7700 | 9200 | 0.367 |
| 6209 | 45 | 1.7717 | 85 | 3.3465 | 19 | 0.7480 | 1.1 | 0.043 | 32.5 | 20.4 | 6800 | 8200 | 0.416 |
| 6210 | 50 | 1.9685 | 90 | 3.5433 | 20 | 0.7874 | 1.1 | 0.043 | 35 | 23.2 | 6100 | 7300 | 0.462 |
| 6211 | 55 | 2.1654 | 100 | 3.9370 | 21 | 0.8268 | 1.5 | 0.059 | 43.5 | 29.2 | 5500 | 6600 | 0.602 |
| 6212 | 60 | 2.3622 | 110 | 4.3307 | 22 | 0.8661 | 1.5 | 0.059 | 52.5 | 36 | 5000 | 6000 | 0.789 |
| 6213 | 65 | 2.5591 | 120 | 4.7244 | 23 | 0.9055 | 1.5 | 0.059 | 58.5 | 40.5 | 4800 | 5800 | 0.99 |
| 6214 | 70 | 2.7559 | 125 | 4.9213 | 24 | 0.9449 | 1.5 | 0.059 | 63.7 | 45 | 4600 | 5600 | 1.1 |
| 6215 | 75 | 2.9528 | 130 | 5.1181 | 25 | 0.9843 | 1.5 | 0.059 | 68.9 | 49 | 4400 | 5400 | 1.2 |
Application Senarios of High Precision Ball Bearings
Customization Welcomed:
We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.
Packing and Shipping:
The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.
Other Technical Data of Ball Bearings
ABEC-5 Tolerance Class ABEC-5 (P5)
| Inner Ring | Tolerance in um/s | |||||||||||
| d mm | Δdmp | Vdp²)Diameter Series | Vdmp | Kia | Sd | Sis3) | ΔBs | Vbs | ||||
| 9 | 0,1,2,3,4 | |||||||||||
| over | including | high | low | max | 3 | max | max | max | High | Low | max | |
| 1)0.6 | 2.5 | 0 | -5 | 5 | 4 | 3 | 4 | 7 | 7 | 0 | -40 | 5 |
| 2.5 | 10 | 0 | -5 | 5 | 4 | 3 | 4 | 7 | 7 | 0 | -40 | 5 |
| 10 | 18 | 0 | -5 | 5 | 4 | 3 | 4 | 7 | 7 | 0 | -80 | 5 |
| 18 | 30 | 0 | -6 | 6 | 5 | 3 | 4 | 8 | 8 | 0 | -120 | 5 |
| 30 | 50 | 0 | -8 | 8 | 6 | 4 | 5 | 8 | 8 | 0 | -120 | 5 |
| 50 | 80 | 0 | -9 | 9 | 7 | 5 | 5 | 8 | 8 | 0 | -150 | 6 |
| Outer Ring | Tolerance in um/s | |||||||||||
| D mm | Δdmp | Vdp²)Diameter Series | Vdmp | Kia | SD4) SD15) | Sea4)5) | ΔBs | Vbs | ||||
| 9 | 0,1,2,3,4 | |||||||||||
| over | including | high | low | max | max | max | max | High | Low | max | ||
| 1)2.5 | 6 | 0 | -5 | 5 | 4 | 3 | 5 | 8 | 8 | 5 | ||
| 6 | 18 | 0 | -5 | 5 | 4 | 3 | 5 | 8 | 8 | 5 | ||
| 18 | 30 | 0 | -6 | 6 | 5 | 3 | 6 | 8 | 8 | 5 | ||
| 30 | 50 | 0 | -7 | 7 | 5 | 4 | 7 | 8 | 8 | 5 | ||
| 50 | 80 | 0 | -9 | 9 | 7 | 5 | 8 | 8 | 10 | 6 | ||
| 80 | 120 | 0 | -10 | 10 | 8 | 5 | 10 | 9 | 11 | 8 | ||
| 120 | 150 | 0 | -11 | 11 | 8 | 6 | 11 | 10 | 13 | 8 | ||
ABEC-7 Tolerance Class ABEC-7 (P4)
| Inner Ring | Tolerance in um/s | ||||||||||||||
| d mm | Δdmp | Δds | Vdp²)Diameter Series | Vdmp | Kia | Sd | Sia | ΔBs | Vbs | ||||||
| 7,8,9 | 1,7,2,3,4 | ||||||||||||||
| over | including | high | low | high | low | max | max | max | max | max | High | low | Low | max | |
| 1)0.6 | 2.5 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 2.5 | 3 | 3 | 0 | -40 | -40 | 2.5 |
| 2.5 | 10 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 2.5 | 3 | 3 | 0 | -40 | -40 | 2.5 |
| 10 | 18 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 2.5 | 3 | 3 | 0 | -80 | -80 | 2.5 |
| 18 | 30 | 0 | -5 | 0 | -5 | 5 | 4 | 2.5 | 3 | 4 | 4 | 0 | -120 | -120 | 2.5 |
| 30 | 50 | 0 | -6 | 0 | -5 | 6 | 4 | 3 | 4 | 4 | 4 | 0 | -120 | -120 | 3 |
| 50 | 80 | 0 | -7 | 0 | -5 | 7 | 5 | 3.5 | 4 | 5 | 5 | 0 | -150 | -150 | 4 |
| Outer Ring | Tolerance in um/s | ||||||||||||||
| D mm | Δdmp | Δds | Vdp²)Diameter Series | Vdmp | Kia | Sd | Sia | ΔBs | Vbs | ||||||
| 7,8,9 | 1,7,2,3,4 | ||||||||||||||
| over | including | high | low | high | low | max | max | max | max | max | High | low | max | ||
| 1)2.5 | 6 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 3 | 4 | 5 | Identical to ΔBs and VBs of inner ring of same bearing | 2.5 | ||
| 6 | 18 | 0 | -4 | 0 | -4 | 4 | 3 | 2 | 3 | 4 | 5 | 2.5 | |||
| 18 | 30 | 0 | -5 | 0 | -5 | 5 | 4 | 2.5 | 4 | 4 | 5 | 2.5 | |||
| 30 | 50 | 0 | -6 | 0 | -6 | 6 | 5 | 3 | 5 | 4 | 5 | 2.5 | |||
| 50 | 80 | 0 | -7 | 0 | -7 | 7 | 5 | 3.5 | 5 | 4 | 5 | 3 | |||
| 80 | 120 | 0 | -8 | 0 | -8 | 8 | 6 | 4 | 6 | 5 | 6 | 4 | |||
| 120 | 150 | 0 | -9 | 0 | -9 | 9 | 7 | 5 | 7 | 5 | 7 | 5 | |||
FAQ:
1.Q:Are you a factory or trading company?
A:Kent Bearing is specialized in manufacturing and exporting bearings, and we have our own factory and warehouse.
2.Q:Can I get some samples and do you offer free samples?
A:Yes, sure, Kent Bearing are honored to offer you samples.
3.Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
4.Q: Could you tell me the material of our bearing?
A: We have chrome steel, and stainless steel, ceramic and plastic material
5.Q: Can we get support if we have our own market position?
A: Please inform us detailed information about your market,we will discuss
and propose helpful suggestion for you and to find the best solution for you.
|
|
